Buckled & Cupped Hardwood Floor Repair in Atlanta, GA

Cupped and buckled hardwood floors in metro Atlanta are almost always symptomatic of an underlying moisture imbalance. In crawlspace homes across Fulton, DeKalb, Cobb, and Gwinnett counties, Georgia’s intense summer humidity saturates floor joists from below, swelling the underside of floorboards while air-conditioned indoor air dries the top surface, creating violent concave cupping.

At Diamond Epoxy Pros, founders Pedro and Marco specialize in forensic moisture diagnostics and non-destructive hardwood flattening. Utilizing Delmhorst slide-hammer pin probes and FLIR infrared thermal cameras, we measure the precise moisture gradient between the bottom and top of your boards. We execute surgical tension-relief cuts, deploy high-pressure vacuum drying mats, and stabilize subfloor moisture before performing dustless refinishing to restore a dead-flat finish.

Safely salvaging distorted hardwood requires disciplined moisture control, structural stress relief, and master wood craftsmanship. Our turnkey restoration scope encompasses:

• Forensic Moisture Gradient Profiling: Utilizing Delmhorst BD-2100 meters with insulated 26-ES slide-hammer pins to measure exact moisture content at the subfloor core versus the board surface.
• Surgical Perimeter Expansion Relief: Removing baseboards and utilizing toe-kick saws to cut precision 1/2-inch to 3/4-inch expansion relief gaps along walls, releasing trapped hydraulic tension.
• High-Pressure Vacuum Mat Extraction: Deploying Injectidry vacuum floor drying mats directly over cupped wood to draw water vapor out of cellular pores without removing floorboards.
• Subfloor Cavity & Crawlspace Dehumidification: Setting up commercial low-grain refrigerant (LGR) dehumidifiers and high-velocity axial air movers to dry saturated joists and crawlspace air.
• Structural Re-Anchoring & Joist Fastening: Securing lifted boards back to subfloor joists using countersunk trim-head screws concealed with grain-matched wood plugs or blind face-nailing.
• Dustless Precision Sanding & Refinishing: Operating Clarke American Sanders and Bona planetary buffers once wood reaches ambient equilibrium (under 10% MC), applying durable commercial polyurethane finishes.

Atlanta’s humid subtropical climate and prevalence of crawlspace foundations create severe seasonal moisture swings that distort solid and engineered wood floors:

• Unsealed Crawlspaces & Missing Ground Vapor Barriers: Moist red clay soil in unencapsulated crawlspaces evaporates groundwater into floor joists, driving bottom-up swelling and widespread cupping across main levels.
• Concealed Appliance & Supply Line Leaks: Slow pinhole leaks behind dishwashers, refrigerators, and washing machines seep under floorboards for weeks, saturating subfloors until boards suddenly tent into the air.
• Air Conditioning Condensate Line Backups: Clogged AC drain lines in attics or closets overflow into floor cavities, soaking plywood subflooring beneath pristine living room hardwoods.
• Concrete Slab Hydrostatic Vapor Pressure: In terrace levels and slab-on-grade homes, lack of an ASTM-compliant subfloor moisture barrier pushes ground vapor into adhesive beds, causing wood planks to hollow and buckle.
• Improper Perimeter Expansion Spacing: Hardwood installed tight against drywall or door jambs without required 1/2-inch expansion gaps buckles violently during humid Atlanta summers when boards expand.

Understanding the physical geometry of your distorted floor is critical to selecting the proper remediation protocol and preventing permanent damage:

The single most common mistake made by inexperienced flooring contractors in Atlanta is rushing to sand a cupped floor flat while the wood is still saturated. When moisture enters the underside of an oak board, the bottom expands while the top remains dry, forcing the edges to curl upward into a washboard profile.

If a contractor runs a drum sander across those raised edges, they cut off the top surface of the wood cells while the board is still swollen. Weeks later, when the subfloor dries and moisture equalizes, the edges shrink back down—leaving the center of the board sticking up as a permanent ridge called "crowning." At Diamond Epoxy Pros, we never touch a sander to cupped hardwood until our Delmhorst pin meters verify that subfloor and surface moisture content are balanced within 2% to 4% of room equilibrium.

Restoring distorted hardwood floors requires scientific moisture balancing, structural tension release, and precision finishing. Pedro and Marco enforce this proven 6-step protocol:

1. 1

   Core Moisture Profiling & Thermal Imaging

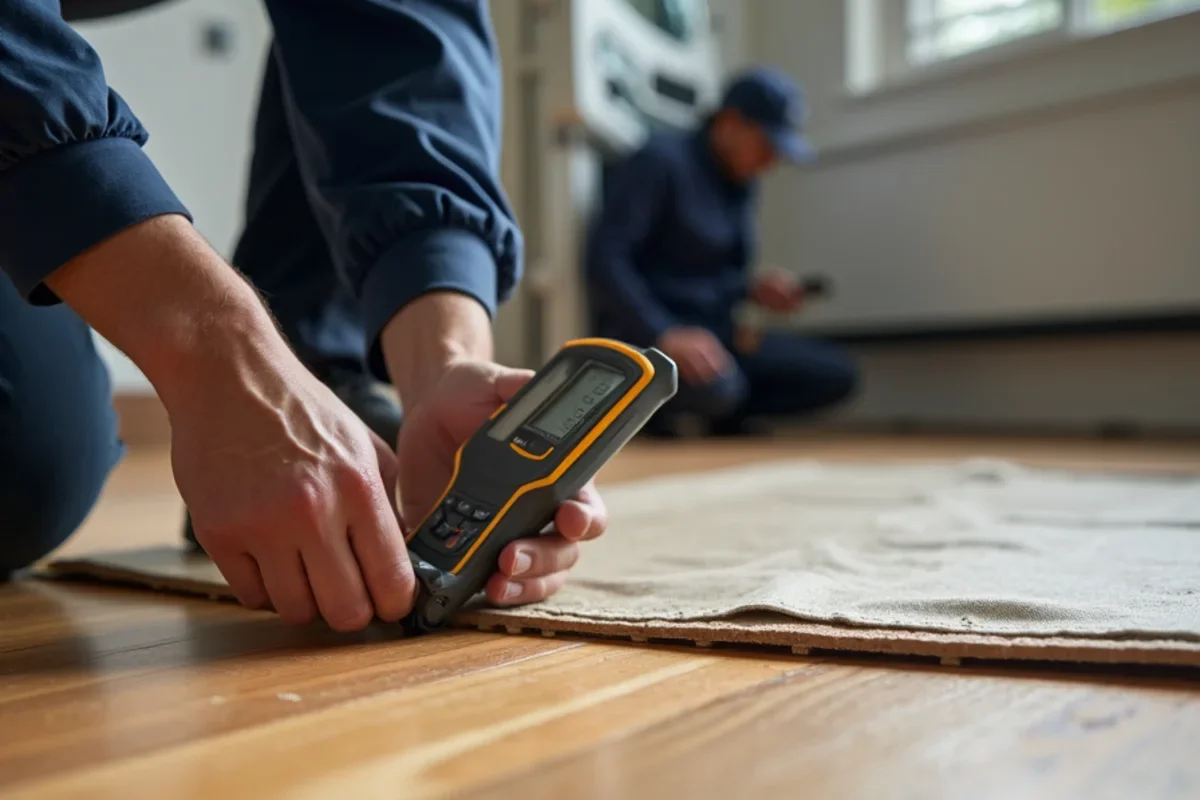

   We scan the floor with FLIR infrared cameras and use Delmhorst slide-hammer pin probes to measure moisture at 1/4-inch, 1/2-inch, and 3/4-inch depths, establishing a baseline psychrometric drying plan.

2. 2

   Surgical Perimeter Tension Relief

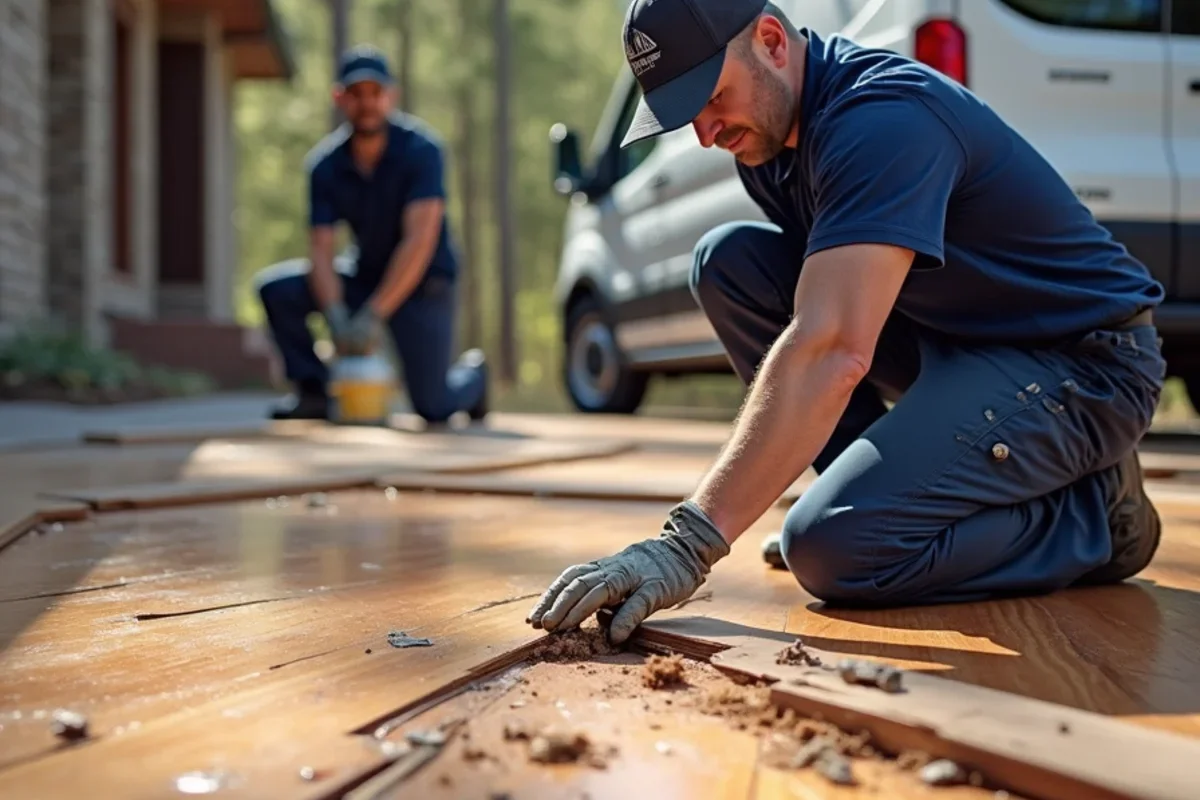

   We remove perimeter shoe moulding and baseboards, cutting expansion relief slots with flush-cut saws along walls to release lateral compression before buckling wood cracks drywall.

3. 3

   High-Pressure Vacuum Mat Dehydration

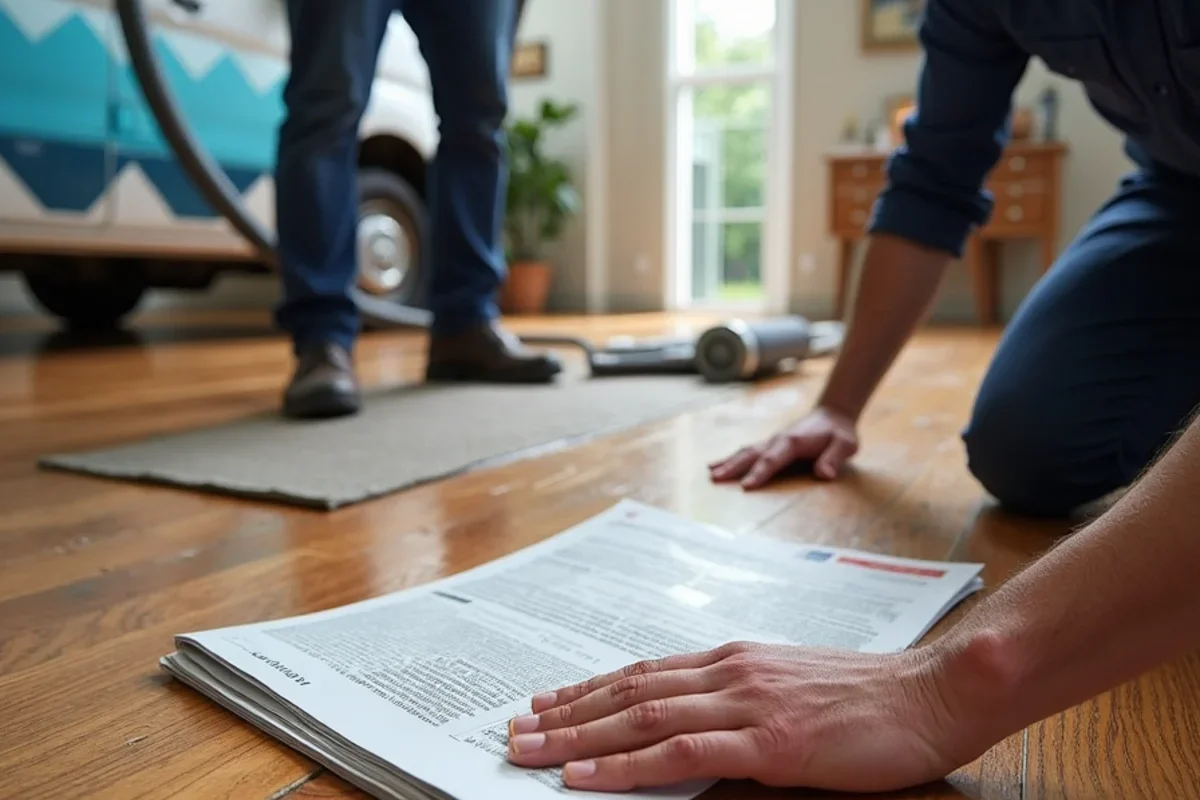

   We seal Injectidry high-pressure vacuum mats over cupped zones, creating negative pressure that pulls trapped water vapor out of wood pores and subfloor cavities.

4. 4

   Directed Crawlspace & Subfloor Drying

   We position commercial LGR dehumidifiers and high-velocity air movers below the floor in crawlspaces or basements, drying floor joists until moisture content drops below 12%.

5. 5

   Structural Fastener Re-Anchoring

   Once boards flatten, we re-secure loose planks to subfloor joists using countersunk trim screws plugged with matching oak dowels, or blind face-nailing along tongue lines.

6. 6

   Dustless Planetary Sanding & Finishing

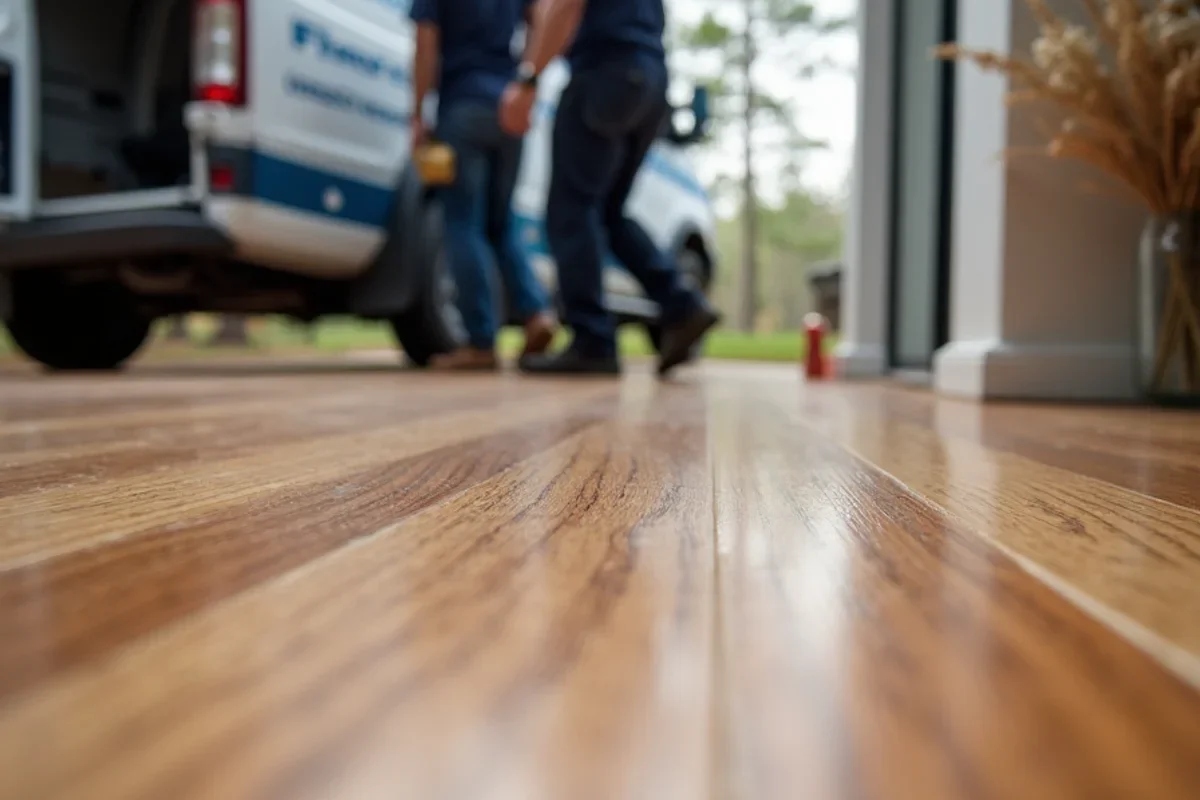

   When moisture equilibrium is fully certified, we sand the floor smooth with our Clarke drum sanders and Bona planetary buffers, applying heavy-traffic waterborne polyurethane.

Every buckled or cupped floor presents unique diagnostic and structural challenges. Primary cost variables across metro Atlanta include:

• Duration of Moisture Saturation: Floors dried within 48 to 72 hours of water exposure can frequently be salvaged flat with vacuum mats, whereas prolonged soaking may require board replacement.
• Total Square Footage & Buckle Height: Minor edge cupping across a 200-square-foot dining room requires less drying equipment than severe 10-inch tented buckling spanning an entire open-concept floor plan.
• Foundation Type (Crawlspace vs. Concrete Slab): Crawlspace homes allow drying from both top and bottom, whereas slab installations require top-side vacuum extraction and specialized vapor barriers.
• Board Salvageability vs. Lace-In Replacement: If floorboards have split, permanently warped, or developed dark tannin water stains, our carpenters lace in matching oak planks to restore structural integrity.
• Scope of Refinishing & Blending: After drying flat, floors with surface finish cracks require complete dustless sanding and multi-coat commercial polyurethane application across contiguous living spaces.

Diamond Epoxy Pros adheres to the National Wood Flooring Association (NWFA) Technical Publication C200 for Moisture and Wood and Technical Publication A100 for Hardwood Flooring Sanding and Finishing. We document daily psychrometric drying logs and verify that wood flooring moisture content matches regional equilibrium moisture content (EMC) standards before refinishing.

In crawlspace homes, our recommendations align with the Georgia State Minimum Standard One and Two Family Dwelling Code (IRC) Section R408, ensuring proper ground cover vapor retarders (minimum 6-mil poly) and adequate foundation cross-ventilation. Diamond Epoxy Pros is a licensed Georgia contractor (Secretary of State #24250262) carrying $2,000,000 in commercial liability insurance. All protective sealers and polyurethanes comply with SCAQMD Rule 1113 low-VOC standards and EPA Lead-Safe RRP requirements for pre-1978 historic Atlanta homes.

When your hardwood floor is lifting or cupping, you need honest technical diagnosis, not a contractor who will sand off your wood surface prematurely. Company founders Pedro and Marco personally evaluate your floor, conduct moisture testing, and manage the drying and repair process from start to finish. We never send commission-driven salespeople or inexperienced subcontractors to your home.

With over 15 years of hands-on hardwood restoration experience and 22 verified 5.0-star Google reviews across metro Atlanta, our reputation is built on scientific moisture diagnostics, patient wood drying, and museum-quality finish craftsmanship that restores the original beauty and value of your hardwood floors.

Real testimonials from Atlanta homeowners who experienced cupped and buckled hardwood recovery:

• “During July’s heavy rains, our 1920s bungalow crawlspace flooded and our oak hardwoods cupped so badly you could barely walk on them. Another contractor told us to sand them flat immediately, which would have ruined them. Pedro and Marco came out, tested the moisture gradient, set up drying mats, and waited until the boards flattened naturally before refinishing. They saved our original historic floors!” — Amanda & Greg R., Grant Park / Atlanta, GA
• “A slow dishwasher leak caused our kitchen hardwood to buckle up six inches off the subfloor. Diamond Epoxy Pros responded the same afternoon, made relief cuts to save our kitchen island, dried the subfloor with commercial equipment, and laced in replacement boards. Flawless workmanship and absolute honesty.” — Robert & Chloe S., Sandy Springs, GA
